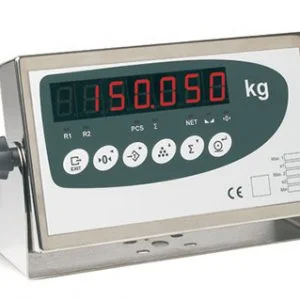

• SMART

    The SMART is an approved Electronic Weighing Indicator valid for all types of commercial transactions. Finished in ABS or Stainless Steel housing with IP65 and ATEX options. Includes adjustable mounting bracket made of Stainless Steel. It’s available in different versions to suit the needs of each application.

    Specifications

    • OIML R76 & EN 45501 approved, single or Multirange, 6000 div at 0,6 μV/div.
    • Display 7 digit 20mm LED high bright.
    • High resolution: 24 bits A/D, 16.000.000 internal divisions; 100.000 external divisions.
    • Friendly configuration and calibration menu.
    • Calibration by Masses or in mV/V, allowing the start-up without calibration masses entering the load cell capacity and sensitivity in mV/V.
    • Calibration sealing by software or mechanically
    • Power up to 4 load cells (350 Ω) or up to 8 load cells (700 Ω).
    • RS-232 serial port for PC, printer or remote display connection.
    • Mounting: bench/wall mounting kit.
    • External Power supply 230 V AC 50/60 Hz.
    • High electromangnetic interference protection using filters, ferrites and shields.
    • Multi-range: for a dual range and dual division size.
    • Standard Ticket or customized from PC.
    • Linearity correction.

    Applications

    • Weight indicator for industrial scales, platform scales, pallet-scales, truck scales.
    • Scales in food, chemical and pharma industries, with hermetic stainless steel version IP65.
    • Weighing Indicator for tank and silos.
    • Piece counting and totalizations (accumulation of weights).
    • Configurable as weight indicator or as remote display of other weight indicator.
    • Animal weighing / check-weigher.

    Options

    • Available in ATEX version Zone 2 (gas) and 21-22 (dust)
    • Alibi Memory DSD legal-for-trade with half million weight registers
    • 4 digital inputs
    • 4 digital outputs
    • Analogue output configurable at 0-5 V, 0-10 V, 0-20 mA, 4-20 mA
    • External power supply of 12 V DC.
    • Additional communication RS-232 and RS-485
  • AND Weighing Indicator AD-4405A/AD-4406A/AD4407A

    AND Weighing Indicator AD-4405A/AD-4406A/AD4407A
    A multitude of Weighing System applications achieved with A&D’s featured Weighing

    AD-4405A – Built-in Printer as optional add-on for your weighing data recording

    • Bright green VFD 20mm (height) display
    • Optional dot matrix compact printer
    • 10 keys for preset tare and
    • unit weight setting, etc.
    • Counting function
    • Standard RS-232C

    AD-4406A – Expand your weighing applications by Battery operation

    • High cost-effectiveness
    • Big LCD 25mm (height) display
    • Multi power supply Alkaline C type battery:
      • Battery life 180 hours (LC 350W 5 1)
      • Battery life 70 hours (LC 350W 5 4)
    • Optional AC adapter
    • F1, F2 selectable function keys
    • Optional RS-232C
    • Load cell 350W 5 4
    • Optional stand available

    AD-4407A – Stainless Steel Enclosure to meet IP65 Dust & Waterproof standards for weighing applications in demanding environments

    • Bright green VFD 20mm (height) display
    • Bracket standard
    • 10 keys for preset tare and unit weight setting, etc.
    • Counting function
    • Standard RS-232C
  • AND Check Weighing Indicator – AD4413-CW

    Check Weighing Indicator
    AD4413-CW

    – Stainless steel frame on the front
    – 7” high-visibility touch panel color LCD
    – Up to 1,000 registered items
    – 4000 times/second high-speed sampling
    – A/D resolution 16,000,000 counts

    • Feedback control.
    • Three types of weighing modes: Passing, Stopping, and Static Weighing.
    • Reports for operational history, weighing history, histogram, control charts, and summary reports.
    • Display various data on smartphones and tablets over wireless LAN during measurement.
    • Item photo import from a USB Flash Drive.
    • Easy setting restoration using a USB Flash Drive.
    • Save data to a USB Flash Drive and import it to personal computer.
    • IP65 dustproofing/waterproofing when the display is mounted on a panel.
  • AND Check Weighing Indicator – AD4412-CW

    Check Weighing Indicator
    AD4412-CW

    –  7” high-visibility touch panel color LCD
    – Up to 1,000 registered items
    – 4000 times/second high-speed sampling
    – A/D resolution 16,000,000 counts

    • Feedback control
    • Three types of weighing modes: Passing, Stopping, and Static Weighing
    • Reports for operational history, weighing history, histogram, control charts, and summary reports.
    • Display various data on smartphones and tablets over wireless LAN during measurement.
    • Item photo import from a USB Flash Drive
    • Easy setting restoration using a USB Flash Drive.
    • Save data to a USB Flash Drive and import it to personal computer.
    • Dust/water protection for the IP65 display when mounted on a panel with OP-10.



  • AND Lightning Protection Weighing Indicator – AD4329A-DLC

    Weighing Indicator for Digital Load Cell
    AD4329A-DLC

    • Standard RS-232C Interface
    • Comparator output to an optional relay
    • Accumulated data can be stored in memory manually or automatically.
    • Up to 8 units of digital load cells
    • OIML R76 Class III or IIII
    • Preset tare function
    • Can be controlled via external device
  • AND Analog Signal Conditioner – AD-4541-V/I

    AD-4430C
    Ultra-Slim Analog Signal Conditioner

    Converts signals received from a bridge type sensor such as a load cell, pressure sensor, strain gauge, etc. to a voltage output (AD-4541-V/–2V to +2V) or a current output (AD-4541-I/4-20mA). The AD-4541-V/I can be easily mounted on a DIN rail or a wall.

    Input:

    • Strain gauge excitation: DC 5V
    • Frequency response: DC to 2Hz (–3dB)

    Output:

    • Voltage Output (AD-4541-V): –2V to +2V
    • Voltage Current (AD-4541-I): 4-20mA

    Housing to be fixed on a DIN rail or a wall
    Power Supply

    • DC24V
  • AND Din-rail Weighing Indicator AD-4430 Series

    AD-4430 Series

    Load Cell Connection – The AD-4430 series is able to check for disconnected or faulty wires through connection with a load cell cable. This is convenient for installation or for start-up inspections and periodic checks.

    Non-Linear Correction Using High-Order Equations – Up until now, linear correction has been commonly used, but the AD-4430 series corrects linearity deviations that linear correction can’t compensate for by using high-order curves, enabling more accurate weighing.

    Gravitational Acceleration Compensation – The function compensates for weighing error due to the difference of gravitational acceleration between the location of calibration and the location of measurement.

    Comparator Function – Compares the measurement with HI/OK/LO limits

    Hold Function – Select from normal hold, peak hold and average hold.

    Remote I/O Function AD-4430C/R – CC-Link or Modbus RTU can be used for remote I/O with control I/O output settings. You can check inputs of sensors connected to the AD-4430C/R through control I/O and turn relays and other switches on or off.

    Real Time Free Fall Compensation AD-4430C/R

    One Shot Small Flow AD-4430C/R

  • AND Weighing Indicator AD-4404

    AD-4403-FP
    Check Weighing Indicator

    The AD-4404 is ideal for check weighing on conveyers, rollers, and platform scales. Simply connect a load cell or a platform scale to the AD-4404 and you can easily make an excellent check scale.

    Large Display:

    • Large Vacuum Fluorescent Display (VFD) with 18mm characters on main display
    • Sub display shows the product name, setpoint, graph, etc.
    • Waterproof front panel (IP-65 compliant)

    Weighing Functions:

    • Checks weight of an object moving on a conveyer and outputs the comparator judgment
    • Checks weight while packing on the conveyer and outputs the comparator judgment
    • Bar graph indicates where the weight falls within the OK range
    • Stores and recalls up to 100 sets of preset items by individual code number
    • High-speed sampling at 100 times/sec enables swift response to weight changes

    External I/O:

    • Control I/O: 11 Input nodes, 11 Output nodes
    • Standard RS-485 I/O, Current Loop Output (for connection to A&D peripheral devices)
    • Optional Items
      RS-232C, RS-422/485, Relay Output, Parallel BCD Output, Analog Output (4-20mA)

    Digital Calibration Function
    Power Supply

    • AC100 to 240V

    Check Mode
    Simply connect the AD-4404 to a weighing device (conveyer) to make an excellent check scale.
    The AD-4404 is equipped with convenient check modes and functions to improve productivity and precision.

  • AND Weighing Indicator AD-4403-FP

    AD-4403-FP
    Flameproof Weighing Indicator

    The AD-4403FP is a flameproof weighing indicator (ExdIIBT5X) and has passed explosion testing by the Technology Institution of Industrial Safety in Japan. It is ideal for use in dangerous environments with materials such as LPG, paints and petroleum based materials.

    Display:

    • Equipped with main and sub displays
    • The main display shows weights and the sub display show settings and accumulated weight.

    Weighing Functions:

    • Preprogrammed with normal-batching and loss-in-weight sequences
    • Automatic accumulation of net weight on batch finish
    • Mixing function – one unit can mix multiple materials
    • Sequence functions for filling and mixing
    • High-speed sampling at 100 times/sec enables swift response to weight changes

    External I/O:

    • Control I/O 6 Input nodes, 6 Output nodes
    • Current Loop Output (for connection to A&D peripheral devices)

    Digital Calibration Function
    Supports all power sources

    • AC100/120/200/220/230/240V (Please request preferred voltage rating at time of order)
  • AND Weighing Indicator AD-4402

    AD-4402
    Multifunction Weighing Indicator with Field Bus Support

    The AD-4402 combines a small body with a large display and excellent weighing sequence functions.
    The AD-4402 can be used with various factory devices with its support for field bus (CC-Link, DeviceNet, PROFIBUS), Modbus, serial, parallel, analog output and relay output.

    Display:

    • Large Vacuum Fluorescent Display (VFD) with 18mm characters on main display
    • Sub display shows weight, raw material, setpoint, cumulative value, code name, and error message, etc. on the same screen.
    • Waterproof front panel (IP-65 compliant)

    Weighing Functions:

    • Preprogrammed with normal-batching and loss-in-weight sequences
    • Batch-time/discharge-time monitoring and supplementary flow function
    • Mixing function – one unit can mix multiple materials
    • Sequence functions for filling and mixing
    • High-speed sampling at 100 times/sec enables swift response to weight changes
    • Memory function
    • Stores 100 data values of both raw materials and recipe codes

    External I/O:

    • Configurable Control I/O: 11 Input nodes, 11 Output nodes
    • Standard RS-485, Current Loop Output (for connection to A&D peripheral devices)
    • Modbus-RTU
    • Optional Items
      RS-232C, RS-422/485, Relay Output, Parallel BCD Output, Analog Output (4-20mA)
    • Field bus Can connect to CC-Link, DeviceNet, PROFIBUS (optional)

    Digital Calibration Function
    Supports all power sources

    • AC100 to 240V (switching-mode power supply) DC 24V model also available (AD-4402D)
  • AND Weighing Indicator AD-4401A

    AD-4401A
    Basic Weighing Indicator

    The AD-4401A has a compact body, high-end A/D converter and versatile functions, including batch-weighing control and check weighing.
    The AD-4401A is suitable for a wide range of applications, from hopper and packer scales to check-weighing scales.

    As a new feature the AD-4401A now is equipped with a High Performance Digital Filter (HPDF). In situations where vibration must be removed, it provides high accuracy as well as high-speed response.

    The AD-4401A is highly compatibility with the old AD-4401 model allowing for easy replacement of any old AD-4401 devices. Easily replaceable

    • The size, color and methods of operation and control panel installation of the AD-4401A remains the same as the AD-4401.
    • Interface connectors retain compatibility so even when updating from AD-4401 to AD-4401A previously connected devices can continue to be used without changing any connectors.
    • Functions have been added but the default settings remain identical to the AD-4401.

    Display:

    • 13mm high characters for the main display and 7mm high characters for the sub display.
    • The front panel is structured to be waterproof (IP-65 compliant).

    Weighing Functions:

    • Pre-programmed with normal-batching and loss-in-weight sequences
    • Batch-time/Discharge-time monitoring, Supplementary flow function
    • Check-weighing mode (5 levels)

    External I/O:

    • Standard, Configurable Control I/O: Input 6, Output 8
    • Standard 20mA Current Loop (for use with A&D peripheral devices)
    • Optional Items
      RS-232C, RS-422/485, Parallel BCD Output, Analog Output (4-20mA)

    Digital Calibration Function
    Power Supply:

    • AC100 to 240V

    New Function:

    • HPDF (High Performance Digital Filter)
    • Modbus-RTU (required option RS-422/485)
  • AND Weighing Indicator AD-4329A

    AD-4329A
    Basic Weighing Indicator

    The AD-4329A is equipped with a triple-range function and is ideal for scales with multiple weighing intervals.
    The AD-4329A is perfect for a diverse array of applications such as hoppers, packers and check-weighing scales.

    Dual Range/Triple Range:

    • Can switch between three ranges by setting combinations of capacity and minimum display.

    Display:

    • Vacuum Fluorescent Display (VFD) with 13mm characters

    Weighing Functions:

    • Checkweighing mode (3 levels) for comparing weight with upper and lower limits.
    • Setpoint comparison for batching applications
    • Manual and automatic comparator and accumulated data storage to memory

    External I/O:

    • 7 Control Input nodes
    • Standard interface RS-232C, 20mA Current Loop (for use with A&D peripheral devices)
    • Optional Items
      RS-422/485, Relay Output, Parallel BCD Output, Analog Output (4-20mA)

    Digital Calibration Function
    Power Supply:

    • AC100/120/200/220/240V (Please request preferred voltage rating at time of order)
  • LP7510 – Hight Precision Weighing Indicator

    LP7510 – Hight Precision Weighing Indicator

    Features & Benefits:

    • NTEP & OIML Approval
    • Stainless steel or mild steel enclosure
    • 6 digits 0.8″ LED or LCD display with backlight
    • Key (OIML): ON/OFF Hold Total Count Gross Tare Zero Point
    • Key (NTEP): ON/OFF Total Count Kg/b Gross Tare Zero Point
    • Dives up to four 3500 load cells
    • Automatic Power off
    • Low-battery remind
    • Dsiplay up to 30.000d
    • RS232 port

    >> Download Brochure

  • IND780 Industrial Terminal

    Power and performance
    for advanced weighing applications

    Graphics display with SmartTrac™ – Optimize the amount of visible process information with the QVGA graphical LCD display, available in monochrome or Active TFT Color. This helps to reduce operational errors and improves productivity.

    Multitude of scale and communication interfaces – Various connectivity options for different scale interface technologies, PLC interfaces, Serial interfaces and Ethernet communications increases flexibility in meeting a combination of measurement and data integration requirements.

    Stainless Steel Enclosure – Wall/Desk Mount enclosure style with IP69K rating ideal for pressurized cleaning and heavy washdown in food and pharmaceutical manufacturing environments.

    Predictive Maintenance – Embedded predictive maintenance and diagnostics tools such as scale and load cell condition monitoring, calibration management, web server, error logs and email alerts.

    IND780 Industrial Terminal
    The IND780 is a terminal whose flexibility of configuration and fast multi-task processing makes it the perfect match for a wide range of specific applications. It features connectivity for multiple sensor technologies, networking, PLCs, and much more, and provides a platform for solutions that can be customized using the terminal’s basic functionality, optional applications, or the TaskExpert™ programming tool.

  • IND570 Industrial Weighing Terminal

    Ready to work
    Performance and Versatility Delivered

    Solutions for a Perfect Fit – Highly versatile in function. Constructed and approved for the harshest industrial environments. The IND570 is easily expanded with software, communication and control interfaces to meet process requirements – adding cost only when needed.

    Flexible Control Options – Support for manual and automated weighing processes. Use operator routines to collect transaction data and guarantee consistency, quality and traceability. In automated systems, allow fast-updating digital I/O and integrated applications to take control, freeing operators for other assignments.

    Secure, Efficient Access to Data – Convenient data management solutions provide data as you want it, when you need it. PLC, network, USB and standard serial communication interfaces available. Adapt data collection and transfer to meet the unique requirements of each weighing application.

    Performance Monitoring – Improve system performance and avoid expensive down-time with proactive system monitoring. Smart, user-friendly diagnostic screens and reports provide important data to service personnel and system engineers, to help keep the system running at maximum potential.

    IND570 Industrial Weighing
    TerminalOne Terminal, Many Solutions

    Designed for performance and versatility, the IND570 industrial terminal is the easy choice for even the most most challenging industrial weighing applications.

    The IND570 features a broad offering of functions to manage weighing applications. Introducing advances in connectivity, performance verification and efficient, secure access to critical process data, the IND570 satisfies ever-increasing demand for measurement accuracy, reliability, efficiency and traceability.

Main Menu
